供貨周期 | 現貨 | 應用領域 | 能源,電子/電池,道路/軌道/船舶,電氣 |
---|

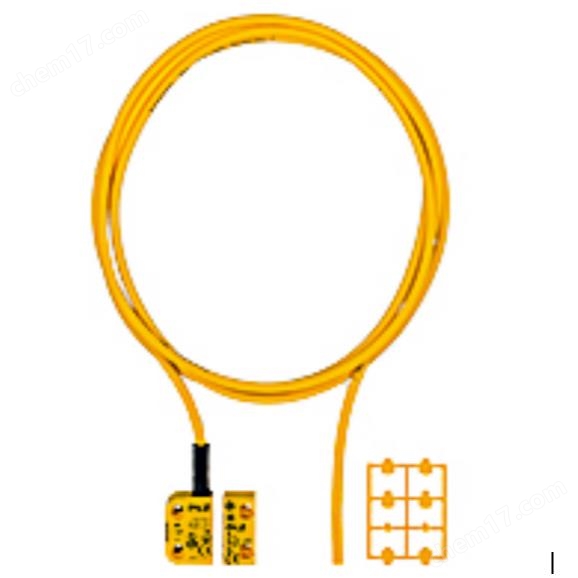

皮爾茲 安全開關 PSEN cs3.1a /PSEN cs3.1 1unit
RFID安全開關2個安全SC輸出端,連接電纜5米,單向觸發,支持SDD,防護等級IP6K9K,切換距離11毫米,Sao=8毫米,Sar=20毫米,PU=1個帶執行器的編碼開關。
RFiD safety switch 2 safe SC outputs, connection cable 5 m, one actuation direction, support for SDD, IP6K9K, switching distance 11 mm, Sao = 8 mm, Sar = 20 mm, PU = 1 piece coded switch with actuator.

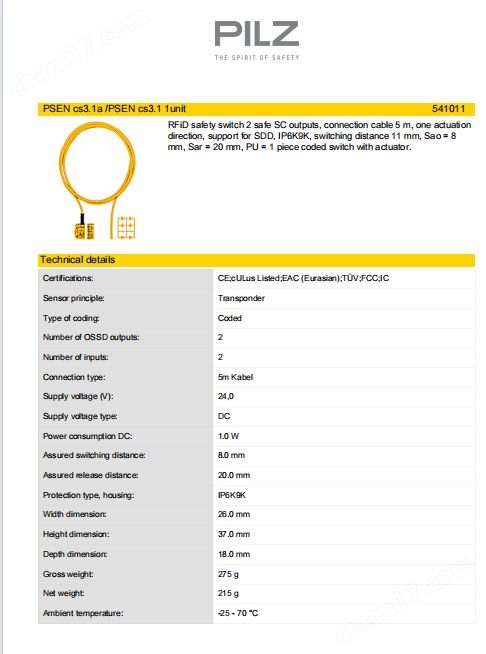

Technical details Certifications: CE;cULus Listed;EAC (Eurasian);TüV;FCC;IC Sensor principle: Transponder Type of coding: Coded Number of OSSD outputs: 2 Number of inputs: 2 Connection type: 5m Kabel Supply voltage (V): 24,0 Supply voltage type: DC Power consumption DC: 1.0 W Assured switching distance: 8.0 mm Assured release distance: 20.0 mm Protection type, housing: IP6K9K Width dimension: 26.0 mm Height dimension: 37.0 mm Depth dimension: 18.0 mm Gross weight: 275 g Net weight: 215 g Ambient temperature: -25 - 70 °C
